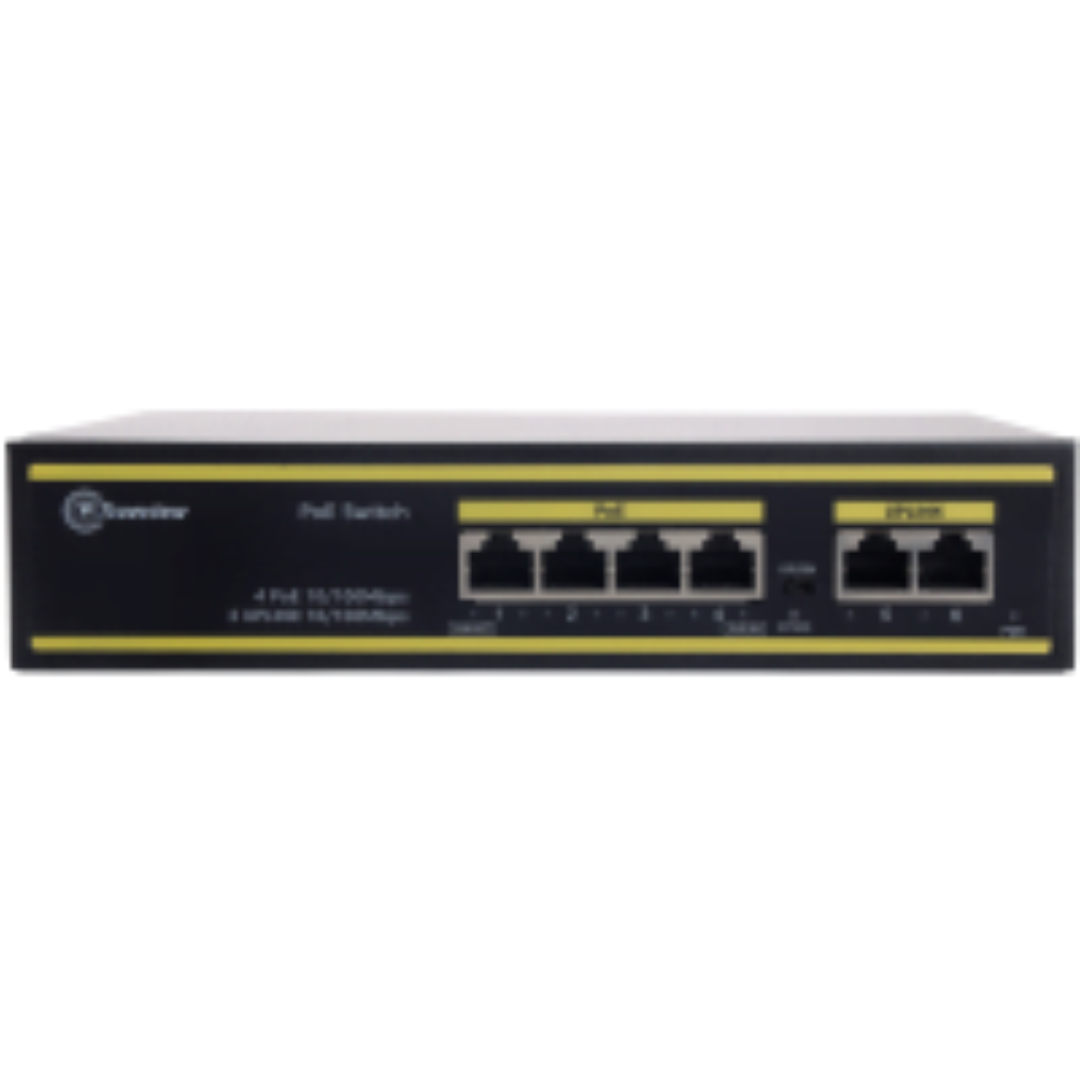

4 Port 10/100Mbps PoE switch

Product code	7906
Network Port	4 10/100Mbps PoE RJ45 port ( Port 1~ port4）
Network Port	2 10/100Mbps RJ45 port uplink(Port5~port 6)
Transfer Rate	100Mbps full Duplex，10 or 100Mbps Half Duplex
Network protocol and standard	IEEE 802.3i、 IEEE 802.3u、IEEE 802.3x、IEEE 802.3af, IEEE 802.3at
Performance	Bandwidth：1.2Gbps (no block)
	Network delay (100 to 100M bps) maximum 20 μs (using 64 byte packet)
	Frame filtering and transmission rate:
	10M port maximum 14,800pps
	100M port maximum 148,800pps
LED indicator	Power
	LINK/ACT
	RESV
	POE Indicator light
POE pin	1/2+, 3/6-；
Power	Max power for single port30W .
Power	Internal power adapter：60W；
Dimensions	Size（LxWxH）：190mm x 40mm x 131mm
Dimensions	Weight：1kg
Environment	Operating Temperature：0°~40°C
Environment	Operating Humidity：10%~ 90%，Non-condensing
